Handrail 2-3/8" - 8
Handrail 2-3/8" - 8

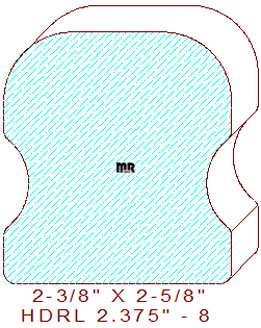

This modest 2-3/8" - 8 handrail measures 2.375" width by 2.625" thickness, necessitating the use of glued-up pieces of five, six, or eight-quarter lumber for milling on an industrial-grade molder. The unpretentious profile contains a 15/16" flat line with two 23/32" round corners on the top. The sides retain a 3/8" tall vertical line transitioning into a 29/32" high by 17/64" deep concave semicircular arc with 1/8" rolled edges creating a comfortable finger grip area, the lower portion retains a 9/16" vertical line with an additional 1/8" eased edge on the bottom corners of the design. An optional dado is available for installing balusters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.625
Depth of Cut: 0.285
Left Cutter Head
Thickness: 2.625
Depth of Cut: 0.285
Top Cutter Head
Width: 2.375
Depth of Cut: 0.938
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
$218.00
Not Needed
Total:
$612.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$230.50
Not Needed
Total:
$651.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$252.25
$209.25
(Template not needed)
$249.25
Not Needed
Total:
$710.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
