Handrail 2-13/16"
Handrail 2-13/16"

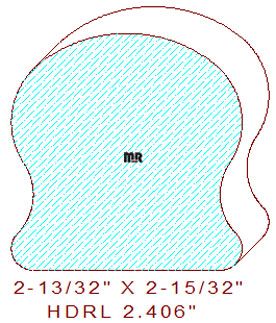

This 2-13/16" handrail measures 2.406" wide by 2.468" thickness. The profile is comprised of a two tangent round radius top with concave sides that create a smooth gripping area with a flared-out bottom which consists of two 7/32" radiuses.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
