Handrail Moulding 2-7/16"

Handrail Moulding 2-7/16"

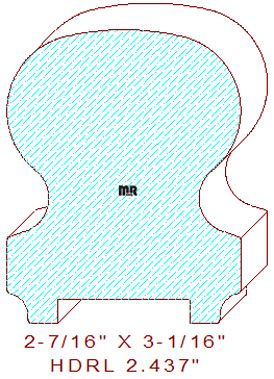

This Stylish Handrail Moulding 2-7/16" measures 2.437" wide by 3.062" tall, the profile is comprised of a slightly rounded top that transitions into 13/16" radiuses on the sides that transform into a concave finger grip area with a 19/32" tall fillet and cavetto positioned at the bottom side edges. The bottom of the rail retains a 1-3/8" wide by 1/4" deep dado for installation of the balustrade or balusters. The DXF file contains three skillfully drafted template designs for creating profile knives for this pattern

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
