Handrail 2-7/16" - 2

Handrail 2-7/16" - 2

Handrail 2-7/16" - 2

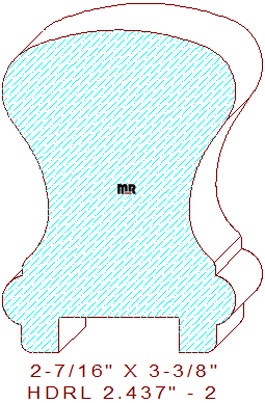

This elegant handrail 2-7/16" - 2 measures 2.437" width by 3.375" tall, necessitating glued-up pieces of five, six, or eight-quarter lumber for milling on an industrial molder. The smooth transitioning pattern contains three tangent radiuses on the semicircular top. The sides retain two tangent concave semicircles, creating the smooth finger grip area in the center. The lower section retains a decorative 33/64" tall half-bead flanked by different-sized fillets and a 1/8" rolled edge on the corners. The dado dimensions for the balisters measure 1-1/4" wide by 3/8" deep.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.375
Depth of Cut: 0.500
Left Cutter Head
Thickness: 3.375
Depth of Cut: 0.500
Top Cutter Head
Width: 2.250
Depth of Cut: 0.429
Bottom Cutter Head
Width: 2.250
Depth of Cut: 0.375

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$249.25
$206.25
(Template not needed)
$193.00
$193.00
Total:
$841.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$265.75
$222.75
(Template not needed)
$205.00
$205.00
Total:
$898.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$282.25
$239.25
(Template not needed)
$217.00
$217.00
Total:
$955.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
