Handrail 2-1/2"

Handrail 2-1/2"

Handrail 2-1/2"

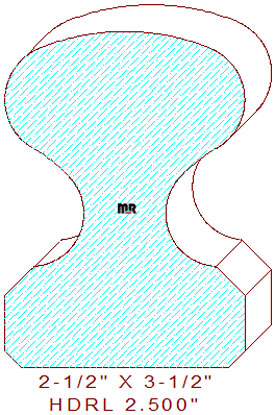

This oval top 2-1/2" handrail measures 2.500" wide by 3.500" tall. The striking profile is comprised of a 2-11/32" radius arc on top, tangent off of a 37/64" semicircle on each side edge that transitions into a two tangent radius finger gripping area, joined to a 37/64" tall vertical line with a 5/16" wide bevel above and an 11/64" wide chamfer on the lower edge. The bottom dimension is 2-1/16" wide. It could be added for many balusters of different sizes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.823
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.823
Top Cutter Head
Width: 2.500
Depth of Cut: 0.452
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$272.50
$229.50
(Template not needed)
$205.50
Not Needed
Total:
$707.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$289.50
$246.50
(Template not needed)
$218.50
Not Needed
Total:
$754.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$306.50
$263.50
(Template not needed)
$231.50
Not Needed
Total:
$801.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
