Handrail 2-1/2" - 1
Handrail 2-1/2" - 1

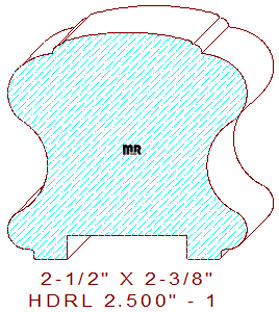

This elegant 2-1/2" - 1 handrail measures 2.500" wide by 2.375" tall. The graceful profile is comprised of a 2-15/32" radius arc joined to a small quarter round bead on top, connected to a 23/64" radius sides that transition into a smooth free flowing finger gripping area, attached to a decorative 13/64" half round bead and a 7/64" tall vertical line with and eased edge on the lower portion of the design. The bottom centered dado dimension is 1-1/4" wide by 1/4" deep for the balusters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.726
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.726
Top Cutter Head
Width: 2.500
Depth of Cut: 0.191
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$212.00
$212.00
Total:
$817.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$230.50
$187.50
(Template not needed)
$225.00
$225.00
Total:
$868.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$249.25
$206.25
(Template not needed)
$244.50
$244.50
Total:
$944.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
