Handrail 2-1/2" - 13

Handrail 2-1/2" - 13

Handrail 2-1/2" - 13

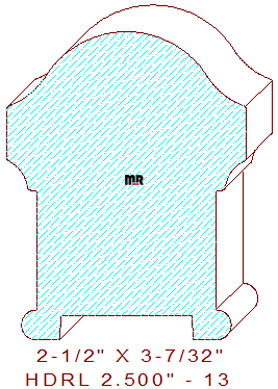

This beautifully shaped 2-1/2" - 13 handrail measures 2.500" wide by 3.218" tall. The attractive profile is comprised of a 1" radius arc that transitions into a 25/32" radius cove on both top sides, connected to a 9/16" tall vertical line that joins to a 23/64" cove that created the finger grip on the railing, attached to a 1-1/4" tall sunk fillet with a decorative 5/16" half circle in the lower portion of the design, the dado dimension is 1-3/8" wide by 1/4" deep for the balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.218
Depth of Cut: 0.500
Left Cutter Head
Thickness: 3.218
Depth of Cut: 0.500
Top Cutter Head
Width: 2.500
Depth of Cut: 0.823
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$241.40
$198.40
(Template not needed)
$218.50
$205.50
Total:
$863.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$257.27
$214.27
(Template not needed)
$231.50
$218.50
Total:
$921.54
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$273.14
$230.14
(Template not needed)
$244.50
$231.50
Total:
$979.29
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
