Handrail 2-1/2" - 14

Handrail 2-1/2" - 14

Handrail 2-1/2" - 14

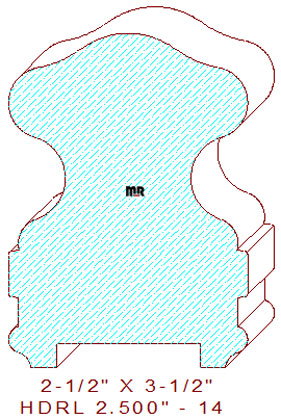

This uniquely shaped handrail 2-1/2" - 14 measures 2.500" wide by 3.500" tall. The ornate profile is comprised of a graceful free-flowing top, joined to a 3/4" half-round circle on the sides that transition inward to form a firm gripping area on the railing, attached to a decorative raised and sunk fillet with a small beautiful cyma reversa in the lower portion of the design, the bottom dado dimension is 1-1/2" wide by 1/4" deep for the balusters or balustrade.

We provide the cut steel size on all our template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.500" / Depth of Cut = .373" (top knives) & .250" (bottom cutters.)

Thickness = 3.500" / Depth of Cut = .594" (right blades) & .594" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
