9000 Handrail 2-1/2" - 15

9000 Handrail 2-1/2" - 15

9000 Handrail 2-1/2" - 15

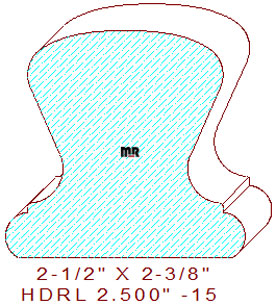

This decorative 2-1/2" - 15 9000 handrail measures 2.500" wide by 2.375" tall. The good-looking profile is comprised of a shallow three tangent radius arc on top, connected to a tapered inward congee consisting of a 23/64" cove that creates the finger grip area, joined to a small vertical line and a 1/4" radius half circle on the bottom sides of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.599
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.599
Top Cutter Head
Width: 2.500
Depth of Cut: 0.300
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.25
$156.25
(Template not needed)
$205.50
Not Needed
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$218.50
Not Needed
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$231.50
Not Needed
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
