Handrail 2-1/2" - 16
Handrail 2-1/2" - 16

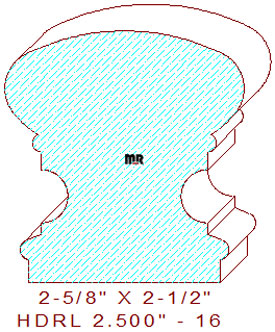

This compelling 2-1/2" - 16 handrail measures 2.500" wide by 2.625" thickness. The attractive profile retains some colonial overtones, it is composed of a 2-11/32" radius arc on top, connected to a two tangent radius elliptical shaped arc on the sides, joined to a 3/16" wide decorative bead that transitions into a 9/32" radius scotia flanked by small lines segments, this creates a firm and comfortable gripping area. The lower portion of the design consists of a protruding elliptical-shaped bead with a 15/64" vertical line segment with 3/64" eased edges. The bottom measures two inches wide; a dado for baluster could easily be milled.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.625
Depth of Cut: 0.659
Left Cutter Head
Thickness: 2.625
Depth of Cut: 0.659
Top Cutter Head
Width: 2.500
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$212.00
Not Needed
Total:
$633.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$245.50
$202.50
(Template not needed)
$225.00
Not Needed
Total:
$673.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$265.75
$222.75
(Template not needed)
$244.50
Not Needed
Total:
$733.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
