Handrail 2-1/2" - 19
Handrail 2-1/2" - 19

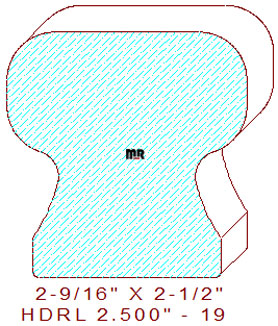

This keyhole-shaped 2-1/2" - 19 handrail measures 2.500" wide by 2.562" tall. The rough lumber blanks will most likely be assembled and glued up from four or five-quarter lumber. The upper portion of the design consists of a 1-1/4" tall rectangular shaped top with 1/2" radius edges, connected to a 9/32" concave semicircular that creates the finger grip area for climbing and descending a flight of stairs, the lower portion of the design tapers outward to a width dimension of 1-31/32" leaving plenty of room for milling a dado for inserting balusters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.562
Depth of Cut: 0.687
Left Cutter Head
Thickness: 2.562
Depth of Cut: 0.687
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$228.47
$185.47
(Template not needed)
Not Needed
Not Needed
Total:
$413.94
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$241.72
$198.72
(Template not needed)
Not Needed
Not Needed
Total:
$440.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$261.59
$218.59
(Template not needed)
Not Needed
Not Needed
Total:
$480.18
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
