Handrail 2-1/2" - 2
Handrail 2-1/2" - 2

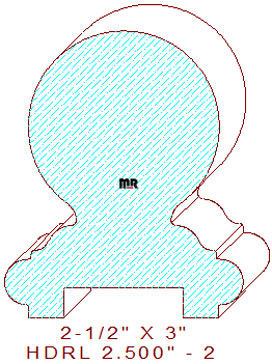

This highly 2-1/2" - 2 decorative handrail measures 2.500" wide by 3.000" tall. The stunning profile is composed of a two-inch wide full circle on top, connected to a small two-tangent radius ogee with a 3/32" drop in elevation, joined to an embellished half round bead with a 1/8" tall vertical line on the lower sides of the pattern, the dado in the bottom for the balusters measures 1-1/4" wide by 5/16" deep, leaving an 11/32" broad segment on each side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.755
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.755
Top Cutter Head
Width: 2.500
Depth of Cut: 0.808
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.312
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$217.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.50
(Template not needed)
