Handrail 2-1/2" - 24

Handrail 2-1/2" - 24

Handrail 2-1/2" - 24

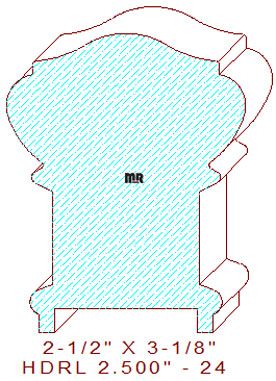

This beautiful 2-1/2" - 24 handrail measures 2.500" wide by 3-1/8" tall. The profile comprises a bidirectional cyma reversa on top, and the sides consist of a thumbnail shape connected to an inset fillet flanked by two beads and a more petite fillet on the bottom. The dado for the balusters measures 1-1/2" wide by 1/4" deep.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.125
Depth of Cut: 0.465
Left Cutter Head
Thickness: 3.125
Depth of Cut: 0.465
Top Cutter Head
Width: 2.500
Depth of Cut: 0.292
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
$205.50
$205.50
Total:
$841.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$252.25
$209.25
(Template not needed)
$218.50
$218.50
Total:
$898.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.75
$224.75
(Template not needed)
$231.50
$231.50
Total:
$955.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
