Handrail 2-1/2" - 32
Handrail 2-1/2" - 32

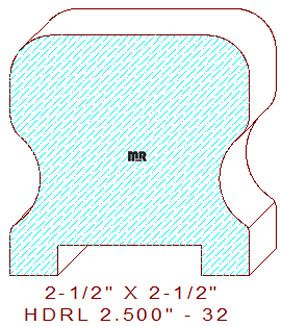

This 2-1/2" Handrail - 32 measures 2.500" wide by 2.500 thickness. The bold and elegant design comprises a 7/16" radius edge top, and the finger gripping area is positioned in the center about 1-1/2" from the top. The area allows for a smooth but sturdy feeling when the railing is placed in one's hand; the bottom of the railing has an optional plowed area measuring 1-1/2" wide by 5/16" deep to receive a balustrade or 1-1/2" balusters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.593
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.593
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.312
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$226.00
$182.00
(Template not needed)
Not Needed
$226.00
Total:
$634.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$195.00
(Template not needed)
Not Needed
$239.00
Total:
$673.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$265.00
$221.00
(Template not needed)
Not Needed
$265.00
Total:
$751.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
