Handrail 2-1/2" - 35
Handrail 2-1/2" - 35

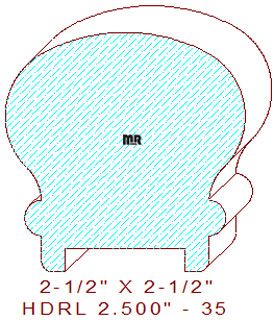

This gorgeous handrail measures 2.500" wide by 2.500" thickness, the profile features a 1-13/16" radius arc on top, the sides consist of a 3/4" to 1/2" tangent radius which creates a comfortable gripping area for the hand, it also retains a 3/8" wide half round bead with a 1/8" radius in the bottom corners. The bottom dado measures 1-1/4" wide by 1/4" tall for inserting balusters/balustrade during assembly.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.656
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.656
Top Cutter Head
Width: 2.500
Depth of Cut: 0.369
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$195.00
(Template not needed)
$226.00
$226.00
Total:
$886.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$252.00
$208.00
(Template not needed)
$239.00
$239.00
Total:
$938.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$278.00
$234.00
(Template not needed)
$265.00
$265.00
Total:
$1042.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
