Handrail 2-1/2" - 38

Handrail 2-1/2" - 38

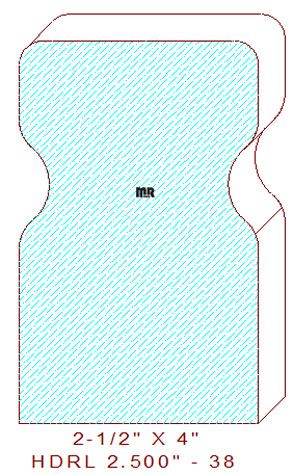

This Rectangular Handrail 2-1/2" - 38 measures 2.500" wide by 4.000" tall, The design is comprised of 1/4" radius side edges on top with the finger gripping area positioned 1-1/2" on center from the top, the grasp area consist of a 1/2" radius flanked by a 3/8" radius on each side which creates a smooth transition that will soften the edges when holding on to the railing after installation.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
