Handrail 2-1/2" - 4

Handrail 2-1/2" - 4

Handrail 2-1/2" - 4

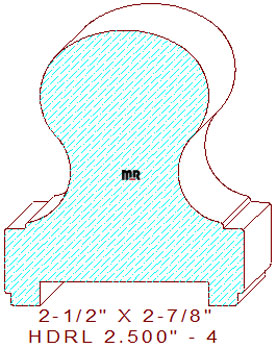

This elegant 2-1/2" - 4 handrail measures 2.500" width by 2.875" thickness, necessitating glued-up pieces of four, five, and six-quarter lumber for milling on a commercial molder. The fancy detail contains a two tangent radius bulb-shaped top; the sides retain a graceful 17/32" concave semicircle, creating the finger grip in the center. The lower section flares outward to full-width, then merges with a decorative raised fillet with perpendicular lines and two 3/64" eased corners. The bottom has a 1-3/4" across by 1/4" deep dado for balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.875
Depth of Cut: 0.781
Left Cutter Head
Thickness: 2.875
Depth of Cut: 0.781
Top Cutter Head
Width: 2.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 2.500
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.75
$195.75
(Template not needed)
$205.50
$205.50
Total:
$845.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.25
$210.25
(Template not needed)
$218.50
$218.50
Total:
$900.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.75
$224.75
(Template not needed)
$231.50
$231.50
Total:
$955.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
