Handrail 2-5/8" - 11
Handrail 2-5/8" - 11

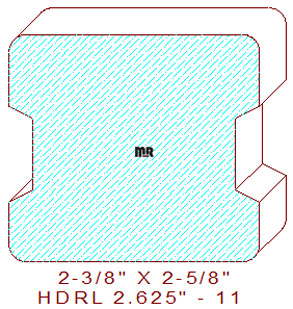

This rectangular 2-5/8" - 11 handrail measures 2.625" wide by 2.375" thickness but is adjustable to any desired width due to the detail being milled from vertical cutter heads. The profile sides are comprised of 3/4" tall vertical segment with 3/16" radiuses that transition into a 1" tall tapered finger gripping area, attached to a 5/8" tall fillet with 3/16" radius on the bottom sides.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.344
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.344
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
Not Needed
Not Needed
Total:
$368.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
Not Needed
Not Needed
Total:
$393.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
Not Needed
Not Needed
Total:
$430.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
