Handrail Moulding 2-5/8" - 22

Handrail Moulding 2-5/8" - 22

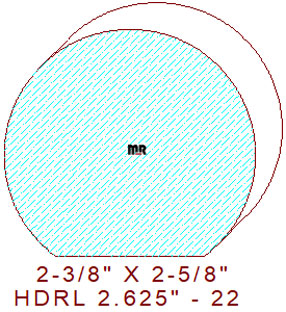

This round handrail moulding 2-5/8" - 22 measures 2.625" wide by 2.375" tall. The partially round profile is comprised of a 1-5/16" radius circle with a 1-9/16" wide flat bottom, there is an optional template design for a 7/8" deep by 1-9/16" plow (not shown) for the bottom of the design.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks, learn how machine feed rates and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.625" / Depth of Cut = .698" (top knives) & .875" (bottom cutters.)

Thickness = 2.375" / Depth of Cut = .656" (right blades) & .656" (left cutters.)

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
