6900 Handrail 2-5/8" - 23

6900 Handrail 2-5/8" - 23

6900 Handrail 2-5/8" - 23

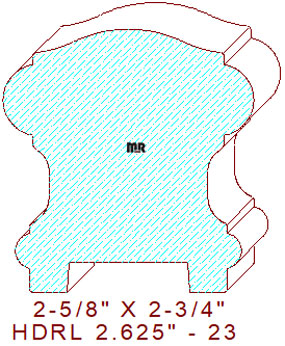

This opulent 2-5/8" - 23 6900 handrail measures 2.625" wide by 2.750" tall. Our version of this elegant pattern is comprised of a bidirectional cyma reversa top consisting of a 1-5/16" radius tangent off of two 1-3/16" semicircles. The sides are composed of a 3/4" half circle flanked by small vertical lines, attached to a bidirectional congee that creates a functional gripping area, the lower portion retains a 3/16" radius bead bordered by different sized vertical lines. The bottom of the rail has a 1-1/4" wide by 5/16" dado for balusters. Be sure to browse our floor rail category for a profile that will compliment this beautiful handrail.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.500
Top Cutter Head
Width: 2.625
Depth of Cut: 0.250
Bottom Cutter Head
Width: 2.625
Depth of Cut: 0.312

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$211.75
$211.75
Total:
$816.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$225.25
$225.25
Total:
$871.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$238.75
$238.75
Total:
$926.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
