Handrail 2-5/8" - 26
Handrail 2-5/8" - 26

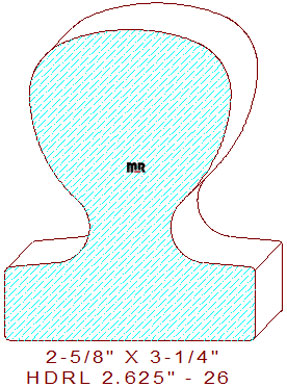

This bulb-shaped 2-5/8" - 26 handrail measures 2.625" wide by 3.250" tall. The profile is comprised of three tangent radiuses on top, forming a shape that resembles a light bulb. This shape is connected to a smooth and graceful gripping area that is easy to rest one hand on. The remaining portion of the detail squares outward in the lower section. An optional dado could be milled into the bottom of the railing to receive a balustrade or mounting hardware.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.250
Depth of Cut: 0.887
Left Cutter Head
Thickness: 3.250
Depth of Cut: 0.887
Top Cutter Head
Width: 2.625
Depth of Cut: 0.455
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.00
$224.00
(Template not needed)
$218.50
Not Needed
Total:
$709.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$283.00
$240.00
(Template not needed)
$232.00
Not Needed
Total:
$755.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$307.00
$264.00
(Template not needed)
$252.25
Not Needed
Total:
$823.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
