Handrail 2-5/8" - 33

Handrail 2-5/8" - 33

Handrail 2-5/8" - 33

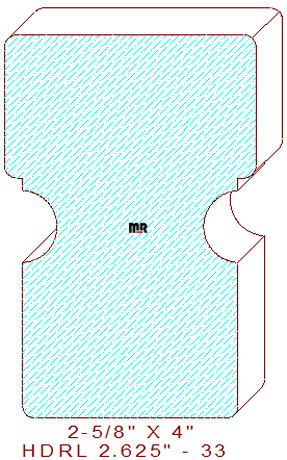

This bold 2-5/8" - 33 handrail measures 2.625" width by 4" tall, necessitating glued-up pieces of five-, six-, or eight-quarter lumber for milling on an industrial molder. The knife design allows for any width size within the machinery parameters used to cut the detail. The hefty pattern contains a 1-1/2" tall rectangular-shaped top with 1/8" rounded corners. The sides consist of a 1/8" vertical fillet connected to a 3/4" tall half-circle, which creates the center's finger grip area. The bottom portion recesses inward to a broad 2-1/4" square with 1/8" round overs on the bottom edges.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 4.000
Depth of Cut: 0.456
Left Cutter Head
Thickness: 4.000
Depth of Cut: 0.546
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$280.50
$237.50
(Template not needed)
Not Needed
Not Needed
Total:
$518.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$299.50
$256.50
(Template not needed)
Not Needed
Not Needed
Total:
$556.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$318.50
$275.50
(Template not needed)
Not Needed
Not Needed
Total:
$594.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
