Handrail Moulding 2-5/8" - 6

Handrail Moulding 2-5/8" - 6

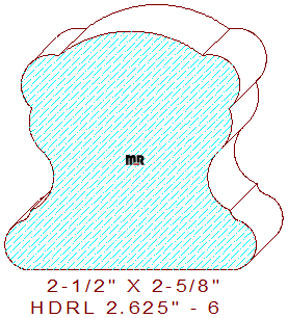

This astonishing handrail moulding 2-5/8" - 6 measures 2.625" wide by 2.500" tall. The distinctive profile is comprised of a shallow 1-1/4" radius arc on top, flanked by 5/16" radius semicircle which resemble a pair of ears, joined to a series of arc and coves that create the free-flowing finger grip area, attached to a 5/8" tall half round circle and cove on the lower sides of the design. The bottom dimension is 2-3/32" wide before the start of the bullnose edges, this area could be used for an optional dado for the balusters or other mounting hardware. We offer a similar profile in this same with for your review and consideration, handrail 2.625" - 12.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.625" / Depth of Cut = .465" (top knives.)

Thickness = 2.500" / Depth of Cut = .507" (right blades) & .507" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
