Handrail 2-11/16"
Handrail 2-11/16"

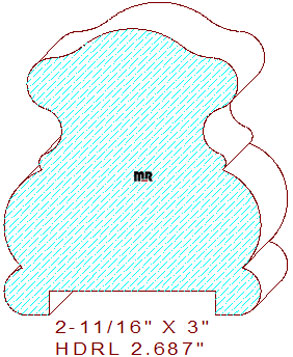

This beautifully ornate 2-11/16" handrail measures 2.687" wide by 3.000" tall. The timelessly elegant symmetrical profile is composed of a bidirectional wave-like arc on top, and the sides consist of a 17/32" tall half-round bead that transitions into a graceful scotia which creates the finger grip area, attached to a decorative 3/32" bead that cascades downward into a 5/8" radius semicircular arc with a 1/2" tall half circle in the lower portion, the bottom dado for the balusters measures 1-3/4" wide by 1/4" deep.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.623
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.623
Top Cutter Head
Width: 2.687
Depth of Cut: 0.306
Bottom Cutter Head
Width: 2.687
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.00
$195.00
(Template not needed)
$221.72
$221.72
Total:
$876.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$235.47
$235.47
Total:
$933.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.50
$232.50
(Template not needed)
$256.09
$256.09
Total:
$1020.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
