Handrail Moulding 2-11/16" - 1

Handrail Moulding 2-11/16" - 1

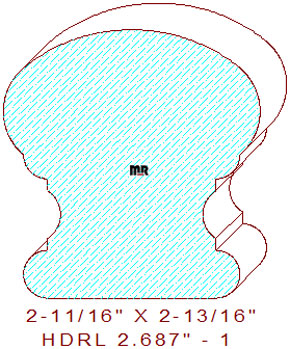

This classy handrail moulding 2-11/16" - 1 measures 2.687" wide by 2.812" tall. The well-designed profile is composed of a 1-51/64" radius arc on top, tangent off a 19/32" semicircular arcs on the sides, connected to a 1/4" quarter round bead that transitions into a 1/2" tall scotia flanked by 1/8" line segments, this area creates a smooth and decorative finger grip for grabbing the railing when installed, the bottom sides retain a 1/4" radius half round circle that really embellishes the overall design. The width at the bottom is 2-15/64" wide, there is room for a dado for balusters up to 1-3/4" wide.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.687" / Depth of Cut = .547" (top knives.)

Thickness = 2.812" / Depth of Cut = .598" (right blades) & .598" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
