Handrail 2-11/16" - 2
Handrail 2-11/16" - 2

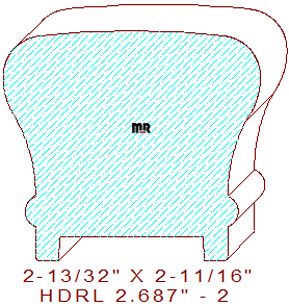

This timeless classic 2-11/16" - 2 handrail measures 2.687" wide by 2.406" thickness, necessitating the use of glued-up pieces of four-quarter lumber for milling on an industrial moulder. The bread-loaf shaped colonial profile is composed of a shallow 9-3/16" semicircular arc on top, joined to a tangent 7/16" radius circle at full width on the sides, connected to a 1-41/64" concave arc that creates a smooth gripping area for grasping the railing, attached to a 5/16" tall half round bead with a 23/64" vertical line segment on the lower side portion, the bottom retains a 1-1/2" wide by 1/4" deep dado/plow for the balusters or balustrade.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.406
Depth of Cut: 0.582
Left Cutter Head
Thickness: 2.406
Depth of Cut: 0.582
Top Cutter Head
Width: 2.687
Depth of Cut: 0.163
Bottom Cutter Head
Width: 2.687
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$207.11
$164.11
(Template not needed)
$221.72
$221.72
Total:
$814.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$219.74
$176.74
(Template not needed)
$235.47
$235.47
Total:
$867.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.67
$195.67
(Template not needed)
$256.09
$256.09
Total:
$946.53
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
