Handrail 2-11/16" - 3

Handrail 2-11/16" - 3

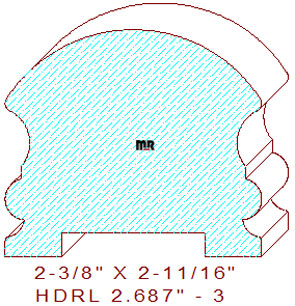

This beautifully elegant 2-11/16" - 3 handrail measures 2.687" wide by 2-3/78" tall; it will take glued-up pieces of four or five-quarter lumber to make a wooden blank big enough for this detail to be milled on an industrial molder. The embellished profile is composed of a 1-37/64" semicircular arc on the top, tangent off of two 3/32" radius points on the sides, connected to a 3/8" concave gripping area with a 1/8" vertical line segment and a 7/16" half circle, joined to a 13/64" cove that transitions the sides back to a full 2-11/16" width, the bottom dado for the balusters or balustrade measures 1-1/2" wide by 1/4" deep.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.258
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.258
Top Cutter Head
Width: 2.687
Depth of Cut: 0.857
Bottom Cutter Head
Width: 2.687
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$235.47
$221.72
Total:
$825.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$249.22
$235.47
Total:
$877.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
$269.84
$256.09
Total:
$956.44
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
