Handrail 2-11/16" - 4

Handrail 2-11/16" - 4

Handrail 2-11/16" - 4

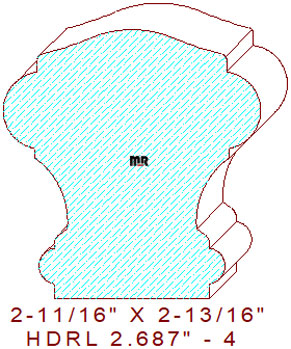

This gorgeous 2-11/16" - 4 handrail measures 2.687" wide by 2.812" tall, allowing the detail to be machined out of three pieces of glued four-quarter lumber. The lovely detail is composed of a bidirectional wave-like cyma reversa derived from a 1-1/8" radius arc tangent off of two 3-1/4" concave semicircles with 3/64" eased edges on top, connected to a 13/16" tall half circle flanked by small vertical line segments in the upper sides, joined to a 13/16" radius finger grip area that merges with a 1/8" quarter round arc and a 3/8" tall bead with a 5/32" high fillet in the lower portion of the design, the bottom width is 1-5/8" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.812
Depth of Cut: 0.671
Left Cutter Head
Thickness: 2.812
Depth of Cut: 0.671
Top Cutter Head
Width: 2.687
Depth of Cut: 0.425
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$235.35
$192.35
(Template not needed)
$214.85
Not Needed
Total:
$642.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$249.60
$206.60
(Template not needed)
$228.60
Not Needed
Total:
$684.79
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$263.84
$220.84
(Template not needed)
$242.35
Not Needed
Total:
$727.03
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
