Handrail 2-3/4" - 10

Handrail 2-3/4" - 10

Handrail 2-3/4" - 10

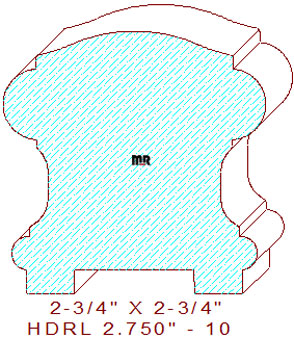

This colonial 2-3/4" - 10 handrail measures 2.750" wide by 2.750" thickness, enabling the detail to be machined from glued-up pieces of four, five or six-quarter lumber. The traditional profile is composed of a bidirectional wave-like top consisting of a 1-5/8" radius arc in the center, tangent off of two 1-1/2" concave semicircles with 3/64" eased edges, the symmetrical sides are made up from a 3/4" tall half round bead flanked by small vertical lines, attached to a bidirectional congee that serves as a comfortable finger gripping area, the lower section has a smaller version of the upper portion of the design, the dado for the balusters measures 1-1/4" wide by 1/4" deep.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.468
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.468
Top Cutter Head
Width: 2.750
Depth of Cut: 0.273
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$218.00
$218.00
Total:
$829.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$232.00
$232.00
Total:
$885.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$246.00
$246.00
Total:
$941.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
