Handrail 2-3/4" - 13

Handrail 2-3/4" - 13

Handrail 2-3/4" - 13

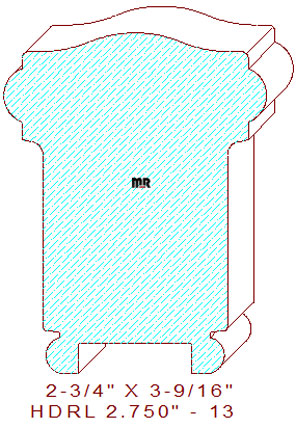

This tall 2-3/4" - 13 handrail measures 2.750" wide by 3.562" high, allowing the pattern to be machined from glued-up pieces of four, five, or six-quarter lumber. The beautiful profile comprises a bidirectional three-tangent radius cyma reversa on top. The sides consist of two 9/16" tall half-round circles flanked by small fillets attached to a two-inch tall congee, creating a firm gripping area. The lower portion retains a decorative 3/8" tall half-round bead connected to a 1/16" wide sunk fillet, the bottom of the detail maintains a 1-3/16" wide by 5/16" deep dado for balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.562
Depth of Cut: 0.813
Left Cutter Head
Thickness: 3.562
Depth of Cut: 0.813
Top Cutter Head
Width: 2.750
Depth of Cut: 0.197
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.313

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.85
$232.85
(Template not needed)
$218.00
$218.00
Total:
$944.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$293.10
$250.10
(Template not needed)
$232.00
$232.00
Total:
$1007.19
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$310.34
$267.34
(Template not needed)
$246.00
$246.00
Total:
$1069.69
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
