Handrail 2-3/4" - 14

Handrail 2-3/4" - 14

Handrail 2-3/4" - 14

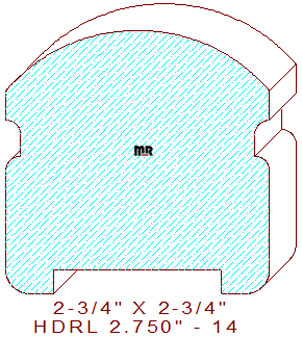

This contemporary 2-3/4" - 14 handrail measures 2.750" wide by 2.750" tall, enabling the pattern to be milled from glued-up pieces of four, five or six-quarter lumber. The modern profile is composed of a 1-13/16" radius arc with 3/64" eased edges on top, connected to a 9/32" tall line segment that joins to a 3/8" wide congee derived from a 5/32" concave semicircle creating the finger grip area, attached to a 1-7/16" tall double eased edge raised fillet on each side of the design, the centered bottom dado for the balusters measures 1-3/4" wide by 1/4" deep.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.406
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.406
Top Cutter Head
Width: 2.750
Depth of Cut: 0.718
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$232.00
$218.00
Total:
$843.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$246.00
$232.00
Total:
$899.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$260.00
$246.00
Total:
$955.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
