Handrail 2-3/4" - 16
Handrail 2-3/4" - 16

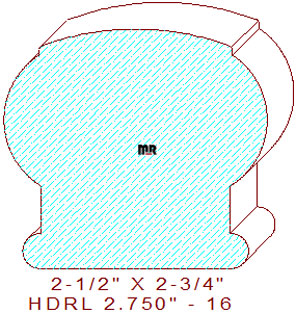

This gorgeous 2-3/4" - 16 handrail measures 2.750" wide by 2.500" thick, allowing the detail to be machined from glued-up four, five, or six-quarter lumber. The beautiful profile is composed of a 2-13/16" radius arc with 3/64" eased edges on the top. The sides consist of two 13/16" semicircular arcs flanked by a 3/32" fillet above and a 1/2" sunk fillet below with a 3/8" wide half-round bead at the bottom edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.531
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.531
Top Cutter Head
Width: 2.750
Depth of Cut: 0.271
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$212.00
$169.00
(Template not needed)
$225.00
Not Needed
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$225.00
$182.00
(Template not needed)
$239.00
Not Needed
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$244.50
$201.50
(Template not needed)
$260.00
Not Needed
Total:
$706.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
