Handrail 2-3/4" - 19
Handrail 2-3/4" - 19

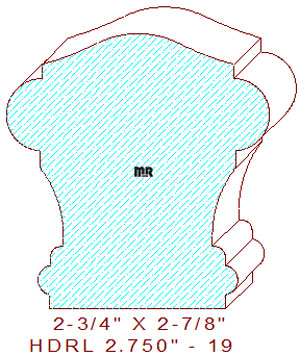

This colonial 2-3/4" - 19 handrail measures 2.750" wide by 2.875" tall. The early settler design comprises a three-tangent radius top, creating a bidirectional cyma reversa. The symmetrical sides are a half-round circle flanked by vertical fillets that transition into shallow radius cavetto, creating a firm gripping area. The decorative sides at the bottom retain a 1/8" radius edge fillet attached to a 5/32" radius half-round circle connected to a 9/64" tall vertical fillet; the bottom of the pattern measures 1-27/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.875
Depth of Cut: 0.527
Left Cutter Head
Thickness: 2.875
Depth of Cut: 0.527
Top Cutter Head
Width: 2.750
Depth of Cut: 0.385
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
$225.00
Not Needed
Total:
$645.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$239.00
Not Needed
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.75
$224.75
(Template not needed)
$260.00
Not Needed
Total:
$752.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
