Handrail 2-3/4" - 22

Handrail 2-3/4" - 22

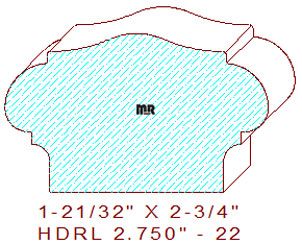

This elegant handrail measures 2-3/4" wide by 1-21/32" thickness, the symmetrical profile is composed of a bidirectional cyma reversa on top, the sides consist of a thumbnail design (this create's a nice and smooth gripping area) that is flanked by small two small fillets and a cong'e is positioned on the bottom of the pattern reducing the width to a 1-13/16" wide dimension.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
