Handrail 2-3/4" - 25

Handrail 2-3/4" - 25

Handrail 2-3/4" - 25

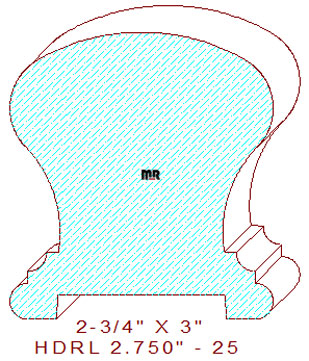

This glamorous handrail 2-3/4" - 25 measures 2.750" wide by three inches tall, permitting the detail to be machined out of glued up pieces of four, five, six or eight quarter lumber. The elegant symmetrical profile is composed of a 2-11/64" semicircular arc on top, connected to two tangent radiuses on the side giving the detail a bulb shaped appearance in the center, attached to a decorative 3/16" cove bordered by a 1/8" wide and a 1/8" tall line segment with a 3/16" high half round bead on the lower edges of the design, the bottom retains a 1-3/4" wide by 1/4" deep dado for the balusters or balustrade with 1/2" wide flat lines on each side edge of the detail.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.750" / Depth of Cut = .447" (top knives) & .250" (bottom cutters.)

Thickness = 3.000" / Depth of Cut = .525" (right blades) & .525" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
