Handrail 2-3/4" - 26
Handrail 2-3/4" - 26

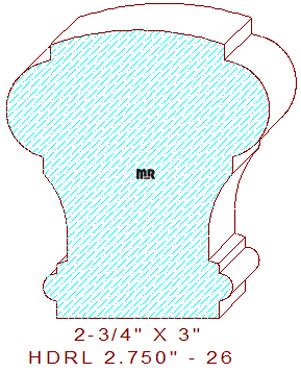

This beautiful 2-3/4" - 26 handrail measures 2.750" wide by 3.000" tall. The smooth-flowing design consists of a series of half-round circles and fillets, and the top has an elliptical shape that fits nicely into the palm of one's hand when grasping the railing.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.625
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.625
Top Cutter Head
Width: 2.750
Depth of Cut: 0.199
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.00
$195.00
(Template not needed)
$225.00
Not Needed
Total:
$658.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$239.00
Not Needed
Total:
$702.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.50
$232.50
(Template not needed)
$260.00
Not Needed
Total:
$768.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
