Handrail 2-3/4" - 32

Handrail 2-3/4" - 32

Handrail 2-3/4" - 32

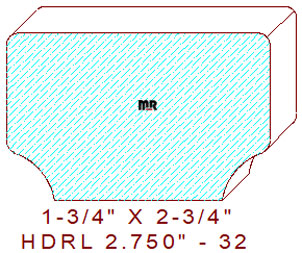

This latter-day handrail 2-3/4" - 32, measures 2.750" wide by 1.750" tall. The pattern will require the use of glued-up pieces of four or solid eight quarter lumber for milling on a commercial-grade molder. The width is variable due to the wood is cut from the left and right vertical cutterheads. The symmetrical, modern profile contains a 1-3/16" tall rectangle with 5/32" rounded side edges. Merged to a 5/8" concave semicircular arc that creates the finger grip area, with 3/64" eased edges, leaving a 1-3/4" width measurement on the bottom side of the design. We offer an alternative profile with similar design characteristics that retains different inner dimensions for your review and consideration, handrail 2.750" - 31.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide enough blend areas on the knives, so you will never realize where one cutter begins or ends; these specific design features will substantially increase yield during the milling process.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 1.750" / Depth of Cut = .689" (right blades) & .689" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
