Handrail 2-3/4" - 37

Handrail 2-3/4" - 37

Handrail 2-3/4" - 37

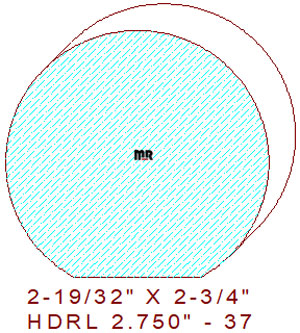

This semi-round handrail 2.750" - 37 measures 2.750" width by 2.583" thickness, requiring the use of glued-up pieces of four, five, or six quarter lumber. Twelve quarter material is also an option if glue lines are not permitted in the detail for milling on an industrial-style molder. The partially round profile contains a 1-3/8" radius convex arc with a 1-5/16 wide flat section for mounting purposes on the bottom side of the pattern. We offer an alternative profile with a 1-5/16" flat bottom for your review and consideration, handrail 2.750" - 50.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level. This commentary will insure prolonged use of your machinery while maintaining consistent perfection when manufacturing the cutters.

Utilize our enchanting patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in the remodel of that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.750" / Depth of Cut = .593" (top knives).

Thickness = 2.625" / Depth of Cut = 843" (right blades) & 843" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
