Handrail 2-3/4" - 41
Handrail 2-3/4" - 41

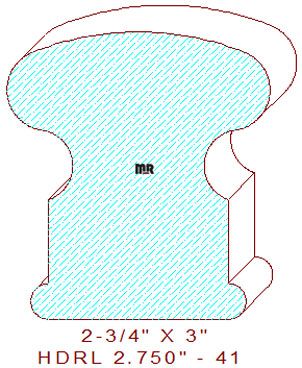

This Handrail 2-3/4" - 41 measures 2-3/4" wide by 3.000" tall. The symmetrical profile is comprised of an elliptical-shaped top that transitions into a concave cavetto, creating a comfortable gripping area, the bottom 1-1/4" portion of the railing consists of a vertical fillet attached to a 3/16" radius half round bead on each side adding to its distinctive appeal.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
