Handrail 2-3/4" - 43

Handrail 2-3/4" - 43

Handrail 2-3/4" - 43

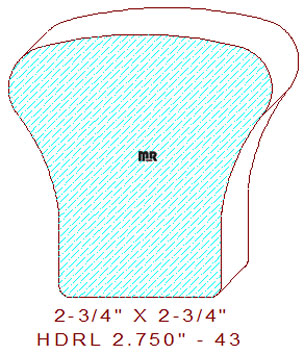

This Handrail 2-3/4" - 43 measures 2.750" wide by 2.750" thickness. The bread loaf-shaped profile is comprised of a 4-1/8" radius top that transitions into 7/16" radius sides at the widest point. The sides are tangent off of a 2-11/16" radius cavetto, this section provides a nice gripping area on the railing. The bottom of the pattern measures 1-11/16" wide and is softened with 1/8" radius edges.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.810
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.810
Top Cutter Head
Width: 2.750
Depth of Cut: 0.281
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$218.00
Not Needed
Total:
$639.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$232.00
Not Needed
Total:
$681.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$260.00
$217.00
(Template not needed)
$246.00
Not Needed
Total:
$723.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
