Handrail 2-3/4" - 48

Handrail 2-3/4" - 48

Handrail 2-3/4" - 48

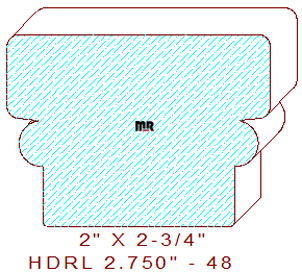

This custom handrail 2-3/4" - 48 measures 2.750" wide by 2.000" thickness, enabling the pattern to be machined out of glued up pieces of four or five quarter lumber, due to the layout of the knife, you can mill the width to any desired size within the parameters of the molder or shaper used to cut the pattern. The decorative profile has 1/8" rounded corners on the top, connected to a 7/8" tall vertical line segment with another 1/8" round over and a 5/16" inward line in the center on the sides, attached to a 15/32" tall half round bead and a 5/8" tall line with a 3/64" rolled edge on the bottom edges of the design.

We're delighted you found a beautiful profile you're interested in, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 2.000" / Depth of Cut = .572" (right blades) & .572" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
