Handrail 2-3/4" - 49

Handrail 2-3/4" - 49

Handrail 2-3/4" - 49

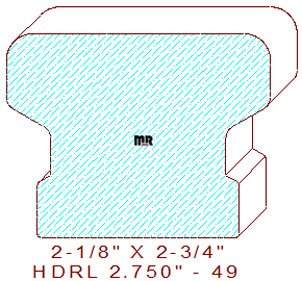

This attractive handrail 2-3/4" - 49 measures 2.750" wide by 2.125" thickness, permitting the pattern to be milled out of glued-up pieces of four and five-quarter lumber. The knife design allows for any sized width within the parameters of the machinery used to cut the detail. The striking pattern consists of two 9/32" rolled edges on the top sides. The sides taper inward, forming a sturdy finger gripping area in the middle. This section is roughly 1-13/16 wide at the narrowest point, with 3/64" eased edges on all corners at the bottom portion of the detail.

We're delighted you found a beautiful profile you're interested in. Please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry, read some of our informational articles ; they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below, We supplied only the important measurements and enter the appropriate dimensions in the boxes provided. A brief detailed explanation of using the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 2.125" / Depth of Cut = .518" (right blades) & .518" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
