Handrail 2-3/4" - 53

Handrail 2-3/4" - 53

Handrail 2-3/4" - 53

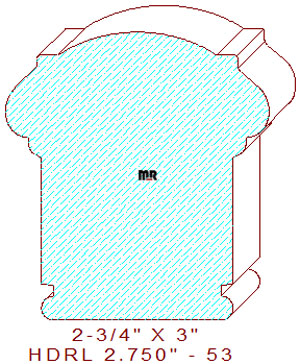

This distinguished handrail 2-3/4" - 53 measure 2.750" width by 3.000" thickness, requiring the use of a 3" wide blank of glued-up pieces of four, five or six-quarter lumber for milling on an industrial molder. The influential profile contains a 1-21/32" wide convex arc on top, flanked by 7/32" fillets with 3/64" eased corners. The symmetrical sides consist of a teardrop-shaped bead bordered by a vertical line above and a 1/8" arc underneath. The round arc connects to a 1-5/16" vertical line segment at a two-inch width in the center. The lower portion retains a 1/8" by 1/8" groove with a decorative 1/4" tall bead on the bottom corners of the design.

Ever notice why some moldings look better than other trim patterns in homes, offices, and older buildings. You may want to review our article on knife marks per inch. Read about how machine feed rates and rpm of cutter heads can directly determine the quality of the products you produce. Following or exceeding industry standards will allow your company to lead the way in molding artisanship.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.750" / Depth of Cut = .238" (top knives).

Thickness = 3.000" / Depth of Cut = .656" (right blades) & .656" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
