Handrail 2-3/4" - 54

Handrail 2-3/4" - 54

Handrail 2-3/4" - 54

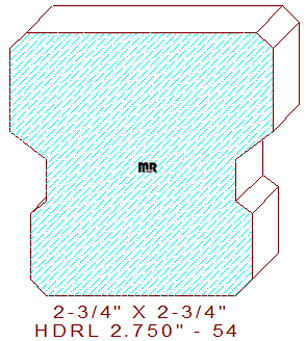

This classy handrail 2-3/4" - 54 measures 2.750" width by 2.750" thickness, necessitating a three-inch broad blank of glued-up four, five, or six-quarter lumber for milling on a commercial moulder. The contemporary profile is milled to any desired width with an easy radial movement of the left cutter head on the moulder. It contains an 11/64" chamfer connected to a 7/8" vertical fillet on the upper right & left sides. The detail tapers inward, creating a comfortable finger grip area in the center. The lower portion contains an 11/16" vertical line attached to the same beveled edge as the top. We offer a larger version of this design for your review and consideration, handrail 4.000" - 4.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 2.750" / Depth of Cut = .480" (right knives) & .480" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
