Handrail 2-3/4" - 8

Handrail 2-3/4" - 8

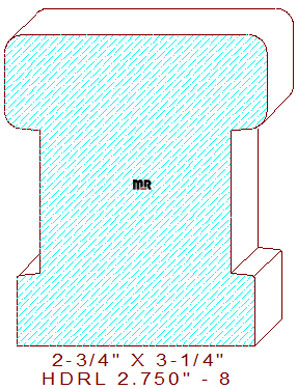

This state-of-the-art 2-3/4" - 8 handrail measures 2.750" wide by 3.250" tall. The width can be machined to any desired size because the detail is milled from the left and right vertical cutter. The modern-day profile is composed of a one-inch tall line segment on the sides with 3/16" eased edges, connected to a 3/8" deep by 1-1/2" tall finger grip area in the center, attached to a 1/4" wide by 3/4" tall line, leaving a 2-1/2" width dimension at the bottom, this area can be utilized for an optional dado for balusters or mounting hardware. We offer a larger version of this profile for your review and consideration, handrail 3.750" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.250
Depth of Cut: 0.376
Left Cutter Head
Thickness: 3.250
Depth of Cut: 0.376
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$251.00
$208.00
(Template not needed)
Not Needed
Not Needed
Total:
$459.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.00
$224.00
(Template not needed)
Not Needed
Not Needed
Total:
$491.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$291.00
$248.00
(Template not needed)
Not Needed
Not Needed
Total:
$539.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
