Handrail 2-13/16" - 1

Handrail 2-13/16" - 1

Handrail 2-13/16" - 1

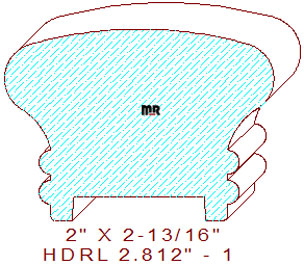

This gorgeous 2-13/16" - 1 handrail measures 2.812" wide by 2.000" tall, requiring the detail to be machined out of glued-up pieces of four, five, six or eight quarter lumber. The beautiful symmetrical profile is composed of a elongated 4-13/64" radius elliptical shaped arc on top, that sides are comprised of a 3/8" radius convex arc tangent to an 11/16" concave semicircle creating the gripping area in the center of the design, joined to two decorative half round beads divided by small fillets with a 3/64" round-over on the lower side edges, the bottom retains a 1-3/8" wide by 1/4" deep dado for balusters or a balustrade.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives, so you will never realize where one cutter begins or ends. These specific design features will substantially increase yield during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.000
Depth of Cut: 0.681
Left Cutter Head
Thickness: 2.000
Depth of Cut: 0.681
Top Cutter Head
Width: 2.812
Depth of Cut: 0.280
Bottom Cutter Head
Width: 2.812
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$148.50
(Template not needed)
$221.10
$221.10
Total:
$782.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.50
$159.50
(Template not needed)
$235.35
$235.35
Total:
$832.70
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$213.50
$170.50
(Template not needed)
$249.60
$249.60
Total:
$883.19
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
