Handrail 2-13/16" - 2

Handrail 2-13/16" - 2

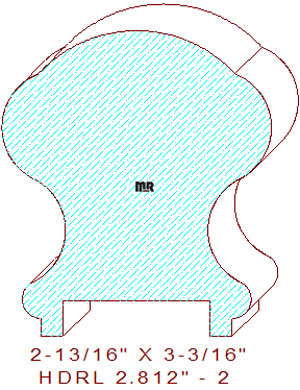

This beautiful 2-13/16" - 2 handrail measures 2.812" wide by 3.187" tall, allowing the detail to be machined out of glued-up pieces of four, five, six or eight-quarter lumber. The lovely profile is comprised of a 1-13/32" radius arc on top, the sides consists of two tangent 19/32" radius arcs that transitions into a 13/64" radius bead with a 3/16" tall vertical line on the bottom side, the dado for the balusters measures 1-17/32" wide by 3/8" deep. We also have a smaller 1-3/4" version of this profile for your review and consideration, handrail 1.750" - 2.
This cad generated dxf file contains three skillfully drafted template designs for creating knives for this handrail pattern. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.188
Depth of Cut: 0.663
Left Cutter Head
Thickness: 3.188
Depth of Cut: 0.663
Top Cutter Head
Width: 2.812
Depth of Cut: 0.450
Bottom Cutter Head
Width: 2.812
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$263.53
$220.53
(Template not needed)
$228.22
$228.22
Total:
$940.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$279.28
$236.28
(Template not needed)
$242.47
$242.47
Total:
$1000.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$302.91
$259.91
(Template not needed)
$263.84
$263.84
Total:
$1090.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
