Handrail 2-7/8"

Handrail 2-7/8"

Handrail 2-7/8"

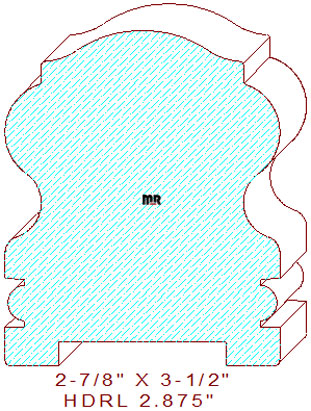

This extravagant 2-7/8" handrail measures 2.875" wide by 3.500" tall, requiring glued-up four, five, or six-quarter lumber for milling. The elegant profile is composed of a bidirectional three tangent radius cyma reversa with 3/64" eased edges on the top, the sides consists of a 15/64" tall vertical fillet in the upper section, attached to a wave-like s-curve creating the finger grip area in the middle, connected to a 3/16" radius edge that transitions into a decorative recessed half round bead flanked by vertical fillets with a 1/16" round-overs on the lower edges. The bottom of the railing retains a 1-3/4" wide by 1/4" deep dado for the baluster or balustrade.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative handrail pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.543
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.543
Top Cutter Head
Width: 2.875
Depth of Cut: 0.323
Bottom Cutter Head
Width: 2.875
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$255.50
$212.50
(Template not needed)
$224.25
$224.25
Total:
$916.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$272.50
$229.50
(Template not needed)
$238.75
$238.75
Total:
$979.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$289.50
$246.50
(Template not needed)
$253.25
$253.25
Total:
$1042.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
