Handrail 2-7/8" - 1

Handrail 2-7/8" - 1

Handrail 2-7/8" - 1

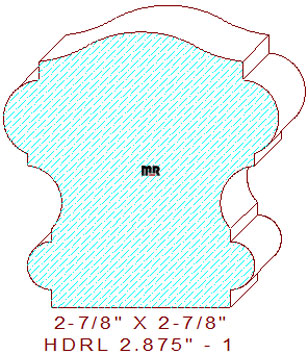

This distinguished 2-7/8" - 1 handrail measures 2.875" wide by 2.875" thickness, enabling the detail to be machined out of glued-up pieces of four, five, or six-quarter lumber for milling on an industrial moulder. The well-designed symmetrical profile is composed of a bidirectional three tangent radius cyma reversa with 3/64" eased edges on the top. The upper portion of the sides retain a 1-3/32" tall torus made up of a 49/64" half-round bead flanked by small line segments, joined to a 25/64" radius scotia that serves as a sturdy gripping area when installed, the lower section retains a smaller version of the torus noted above with 3/64" eased edges on the bottom sides.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.875
Depth of Cut: 0.701
Left Cutter Head
Thickness: 2.875
Depth of Cut: 0.701
Top Cutter Head
Width: 2.875
Depth of Cut: 0.313
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.75
$195.75
(Template not needed)
$224.25
Not Needed
Total:
$658.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.25
$210.25
(Template not needed)
$238.75
Not Needed
Total:
$702.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.75
$224.75
(Template not needed)
$253.25
Not Needed
Total:
$745.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
