Handrail 2-7/8" - 2

Handrail 2-7/8" - 2

Handrail 2-7/8" - 2

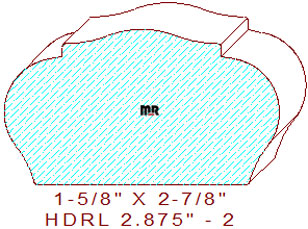

This imperial 2-7/8" - 2 handrail measures 2.875" wide by 1.625" thickness, permitting the detail to be machined out of eight-quarter lumber. The king/queen crown-shaped profile is composed of a bidirectional three tangent radius cyma reversa with 3/64" eased edges on the top, the symmetrical sides are comprised of a 9/64" vertical line segment in the upper portion, connected to a 9/16" radius arc tangent to a 1-3/32" concave semicircle with a 3/64" round-over on the bottom sides of the design.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 16,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.802
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.802
Top Cutter Head
Width: 2.875
Depth of Cut: 0.148
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$224.25
Not Needed
Total:
$523.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$238.75
Not Needed
Total:
$557.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$253.25
Not Needed
Total:
$590.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
